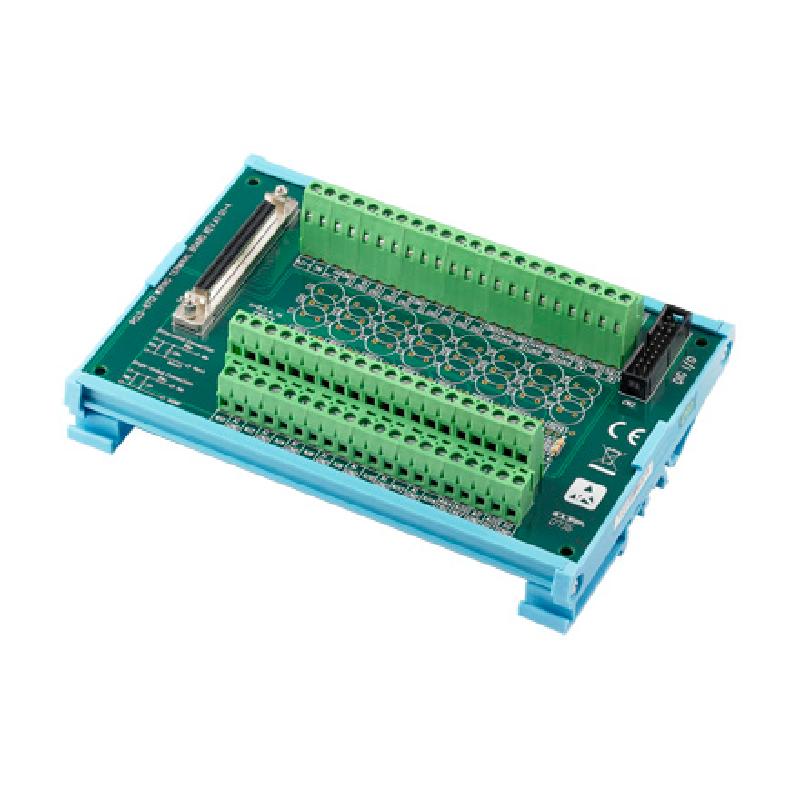

研华PCLD-8712 PCI-1712接线端子，DIN导轨支架

• PCI-1712/1732低成本螺丝端子板，支持68芯SCSI-II连接器

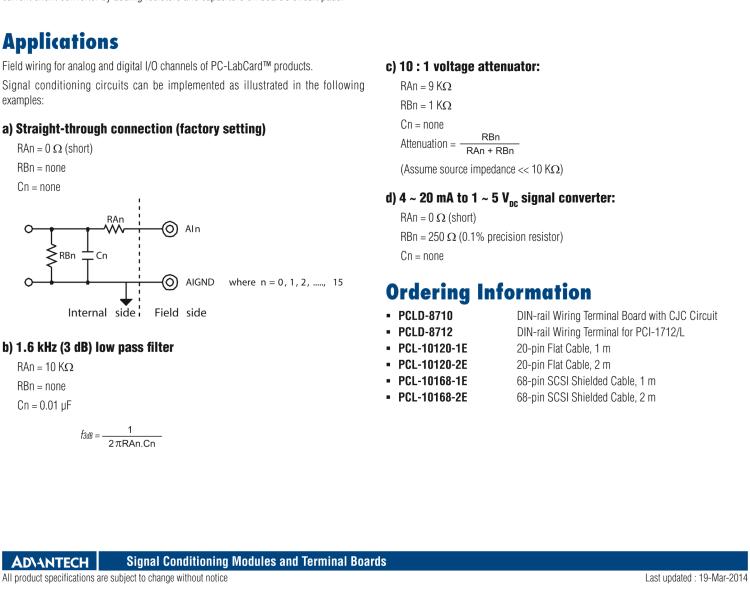

• 预留信号调节电路如低通滤波器、电压衰减器等空间
• 工业级螺丝夹具接线端，适合繁重任务，连接可靠
• DIN导轨安装箱以方便安装
• 尺寸:169毫米（宽）x 112 毫米(长)x 51毫米(高) (6.7 " x 4.4 " x 2.0”英寸)
• The PCLD-8712 Screw-terminal Board provides convenient and reliable signal wiring for the PCI-1712/1732 of which has a 68-pin SCSIII connector. Due to its special PCB layout you can install passive components to construct your own signal-conditioning circuits. The user can easily construct a low-pass filter, attenuator or current shunt converter by adding resistors and capacitors on board’s circuit pads.
