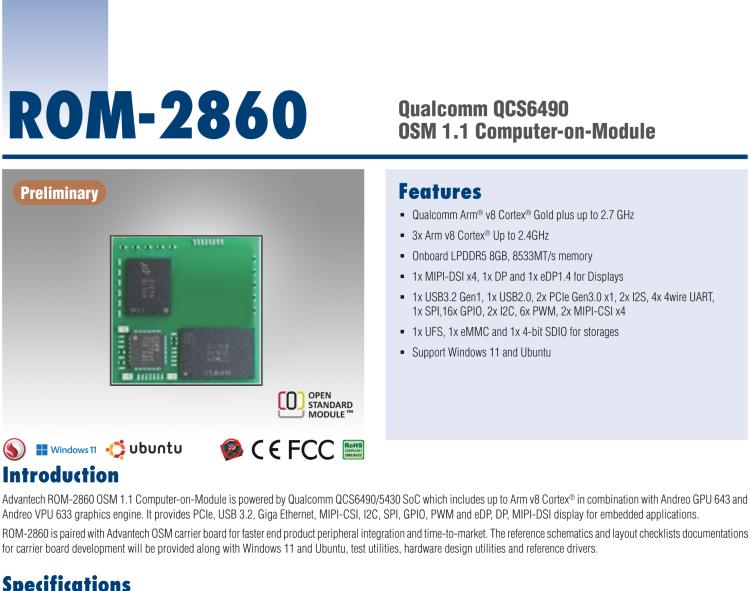

研华ROM-2860 Qualcomm QCS6490 OSM 1.1 Computer-on-Module

  • 1 Kryo Gold plus up to 2.7 GHz
  • 3 Kryo Gold at 2.4 GHz
  • 4 Kryo Sliver at 1.9 GHz
  • Andreo VPU 633 4K30 encode/Decode
  • Andreo GPU 643, OpenGL ES3.2/OpenCL 2.0
  • 13 TOPs NPU for AI applications
  • Onboard LPDDR5 8GB, 8533MT/s
  • 1x MIPI-DSI x4, 1x DP and 1x eDP1.4 for Displays
  • 1x USB3.2 Gen1, 1x USB2.0, 2x PCIe Gen3.0 x1, 2x I2S, 4x 4wire UART, 1x SPI,16x GPIO, 2x I2C, 6x PWM, 2x MIPI-CSI x4
  • ROM-2860 OSM 1.1 Computer-on-Module is powered by Qualcomm QCS6490/5430 SoC which includes up to Arm v8 Cortex® in combination with Andreo GPU 643 and Andreo VPU 633 graphics engine. It provides PCIe, USB 3.2, GbE, MIPI-CSI, I2C, SPI, GPIO and eDP, DP, MIPI-DSI display for embedded applications.
