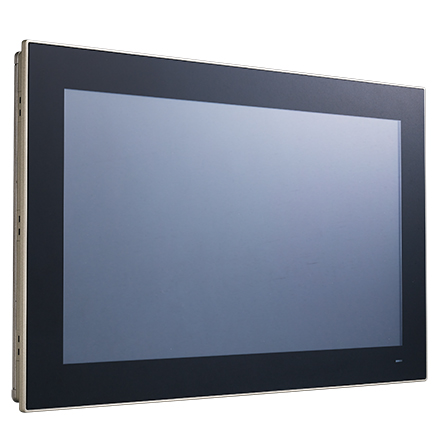

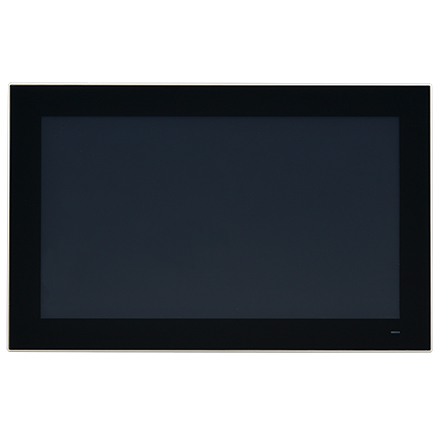

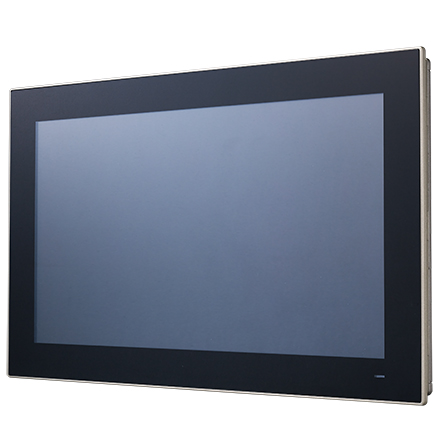

研华PPC-3180SW 18.5寸无风扇宽屏工业电脑
- 18.5" Fanless Widescreen Panel PC with Intel® Pentium® N4200 Quad-Core Processor
18.5" true-flat TFT LCD with projected capacitive touch control
Fanless design with low power consumption
Supports 1 x internal 2.5" SATA HDD and 1 x mSATA
Configurable RS-232/422/485 ports via BIOS
Automatic data flow control over RS-485
Wide range DC support (12 ~ 24 VDC)
Supports dual displays
IP65-rated front panel
可选配置：
1、PPC-3180SW-PN4A/N4200/4G/500G/适配器
2、PPC-3180SW-PN4AU/N4200/128G固态/适配器
备注：也可以根据客户需求定制产品。
产品规格
PPC-3180SW | ||
System | CPU | Intel Pentium® N4200 quad Core |
频率 | 1.1GHz, turbo boot to 2.5GHz. | |
2级缓存 | 3MB | |
内存 | 1 x SODIMM, DDR3L 1600/1866, max. 8 GB | |
硬盘 | 1 x 2.5" SATA （可选；需要一个支架模块） | |
网络 | 2 x 10/100/1000 Mbps Ethernet (Intel I211-AT) | |

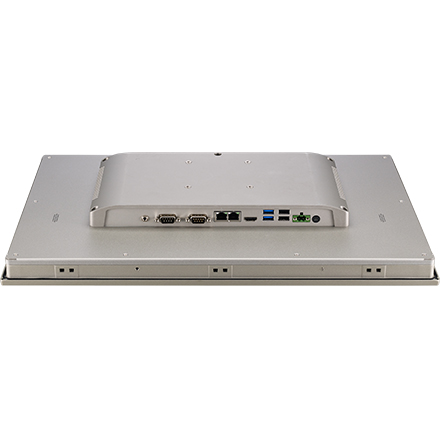

I/O | 2 x Serial ports: 1 x RS-232, 1 x RS-232/422/485 2 x USB 3.0, 2 x USB 2.0 1 x Line-out 1 x HDMI | |
扩展 | 1 x Mini PCIe | |
看门狗定时器 | 255个定时器级别，由软件设置 | |
Speaker | 2 x 1W | |

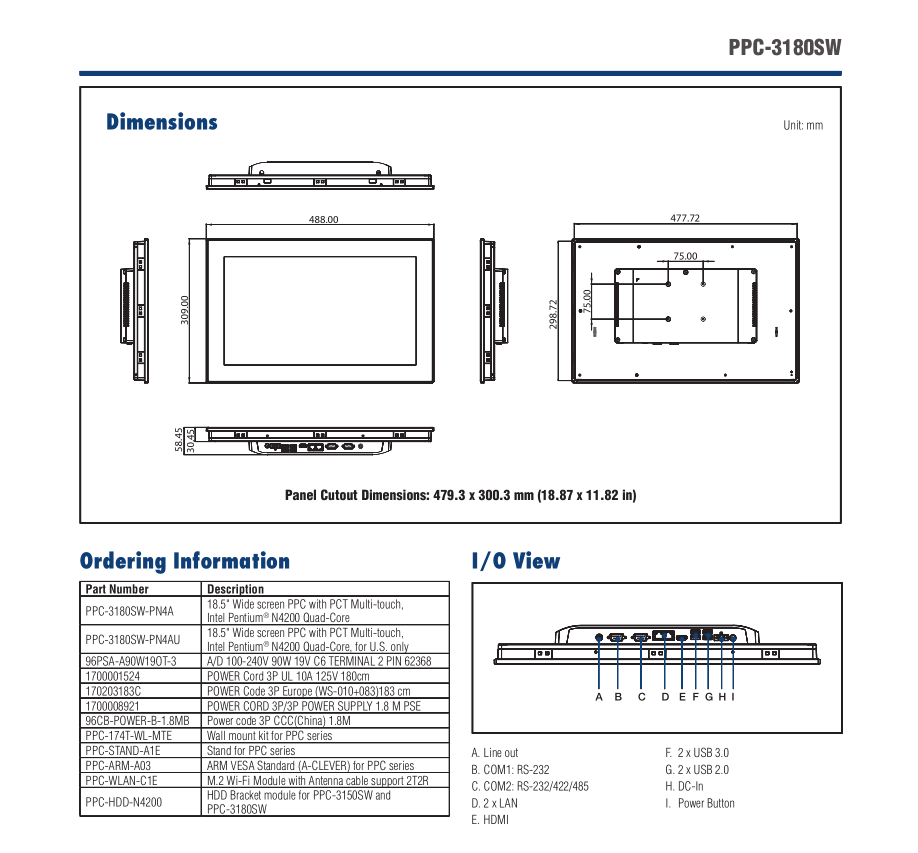

物理特征 | 尺寸 | 488 x 309 x 58.45 mm (19.21 x 12.16 x 2.3 in) |
重量 | 5.4 kg (11.90 lb) | |
OS支持 | OS支持 | Microsoft® Windows 10(64-bit), Windows 10 IOT LTSC, Linux, Android 8.1 |
功耗 | 输入电压 | 12 ~ 24 VDC |
功耗 | 35W | |
LCD | 显示 | 18.5" TFT LCD (LED backlight) |
分辨率 | 1366 x 768 | |
观察角 | 85 (Left), 85 (Right), 80 (Up), 80 (Down) | |
Luminance | 450 | |
对比度 | 1000 | |
触摸屏 | Touch Type | Multi-touch projected capacitive |
光射透 | 90% ± 2% | |
Controller | USB接口 | |
运行环境 | 操作温度 | 0 ~ 50 °C (32 ~ 122 °F) with SSD 0 ~ 40 °C (32 ~ 104 °F) with HDD |
贮存温度 | -20 ~ 60 °C (-4 ~ 140 °F) | |
相对湿度 | 10 ~ 95% @ 40 °C（非凝结） | |
抗振 | Operating 10 G Peak Acceleration (11 ms Duration), Follows IEC 60068-2-27 | |
EMC | CE, FCC Class B, BSMI, EN 60601-1-2 | |
认证 | CE, UL, CCC, BSMI | |
前面板保护 | 符合IP 65 | |
